In the pursuit of stronger, lighter, and more sustainable materials, the manufacturing industry is witnessing a significant shift toward Fiberglass Reinforced Polyurethane (GFRPU) pultrusion—a technology that is redefining the performance limits of composite materials.

What is GFRPU Pultrusion?

At its core, GFRPU pultrusion is a continuous manufacturing process used to produce composite profiles with a constant cross-section. Unlike traditional methods that use polyester or vinyl ester resins, this process utilizes high-performance polyurethane (PU) resin as the matrix.

During the process, continuous glass fibers are thoroughly saturated with the PU resin and then pulled through a heated precision steel die. Inside the die, the chemical reaction is triggered, and the material solidifies into a high-strength profile that exits the machine ready for cutting.

The Technical Edge: Superior Bonding

The "secret sauce" of GFRPU lies in the chemical relationship between the polyurethane resin and the glass fibers. Unlike other resins that simply wrap around the fibers, polyurethane forms a tenacious interfacial bond with the glass.

This superior adhesion results in:

• Exceptional Shear Strength: High resistance to delamination under heavy loads.

• Impact Resistance: The ability to absorb energy without brittle fracturing.

• Thinner Walls: Because the material is so structurally sound, engineers can design profiles with much thinner walls than traditional composites, reducing weight without sacrificing safety.

Transforming Modern Infrastructure

GFRPU pultrusion is no longer a niche technology; it is actively disrupting several key sectors:

• Architecture & Construction: It is the premier choice for ultra-energy-efficient window frames and curtain walls due to its combination of structural strength and thermal insulation.

• Power & Energy: Used for utility poles, cross-arms, and cable trays, where its non-conductive nature and weather resistance are critical.

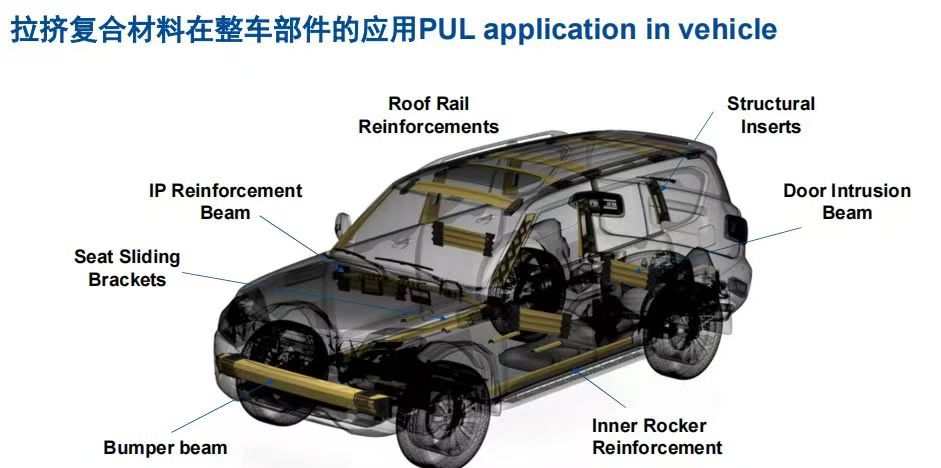

• Transportation: Providing lightweight structural components for electric vehicles (EVs) and heavy-duty trailers to improve fuel efficiency and load capacity.



As global industries pivot toward "Green Building" and "Lightweighting," GFRPU pultrusion stands out as the backbone of next-generation industrial design, offering a rare balance of durability and environmental efficiency.
