Polyurethane Pultrusion (FRPU) vs. Traditional FRP: Mastering PU Resin Control & Mat-Free Surface Aesthetics

Introduction

In the composite manufacturing industry, a common misconception persists that Polyurethane Pultrusion (FRPU) is merely a straightforward resin swap from traditional Fiber Reinforced Plastics (FRP). However, switching from unsaturated polyester or vinyl ester to Polyurethane (PU) introduces a radical change in chemical dynamics, processing windows, and process control requirements.

At Lovelyhouse, we specialize in overcoming the complex engineering challenges of FRPU manufacturing. In this technical article, we break down why PU resin control is a highly sensitive science and how we achieve premium, mirror-like surface aesthetics through our advanced mat-free, low-pressure pultrusion process.

The Core Challenge: Two-Component (A+B) PU Resin Control & Foaming Mitigation

Traditional FRP resins utilize relatively stable, slow-reacting curing systems. In contrast, Polyurethane pultrusion relies on a highly reactive, cross-linking two-component (A+B) chemical system consisting of polyol and isocyanate.

The primary technical bottleneck in FRPU production is mixing imbalance and moisture-induced foaming.

• Moisture Sensitivity: Isocyanate reacts aggressively with even trace amounts of ambient moisture or humidity, generating carbon dioxide (CO₂) gas. If uncontrolled, this reaction causes micro-foaming, severely compromising the structural integrity and density of the composite matrix.

• Mixing Precision: The volumetric ratio between Component A and Component B must be maintained with millisecond-level precision. A temporary imbalance of even a fraction of a percent will alter the stoichiometric ratio, leading to incomplete curing, soft spots, or localized brittle zones inside the pultrusion die.

• Thermal Management: Because the PU reaction is highly exothermic and cures rapidly, precise temperature zoning across the injection box and the pultrusion die is critical to prevent premature gelation.

Going Veil-Less: The Mechanics of Mat-Free, Low-Pressure FRPU Pultrusion

To meet strict architectural and industrial demands for ultra-smooth, mirror-like premium surface finishes, we have eliminated the use of traditional surface mats (continuous filament veils).

While a surface mat acts as a cosmetic "cushion" to mask minor internal imperfections, it also adds thickness and restricts geometric precision. Our mat-free, low-pressure pultrusion process delivers a flawless finish directly out of the die, but it narrows the processing window to near-zero tolerance.

Three Pillars of Our Defect-Free FRPU Process:

1. Flawless Fiber Wetting Under Low Pressure: Without a mat to hold resin, pure continuous fiberglass rovings must be perfectly and uniformly impregnated. We utilize custom-engineered low-pressure injection boxes that ensure 100% fiber wet-out without causing fiber washing or dry strands.

2. Total Micro-Bubble Suppression: Without a surface veil to hide microscopic defects, any microscopic bubble trapped in the resin will immediately ruin the surface aesthetics. We employ inline vacuum degassing and hermetically sealed dual-component dosing systems to eliminate air entrainment prior to injection.

3. Precision Die Pressure Balancing: The fast-curing nature of PU means the resin undergoes rapid volumetric changes inside the closed die. We strictly monitor and balance the internal cavity pressure to prevent the PU resin from micro-foaming while ensuring the profile exits the die with a pre-painted look.

Why Choose FRPU Over Traditional FRP?

Despite the manufacturing difficulties, the resulting FRPU profiles offer vastly superior performance metrics compared to traditional polyester-based composites:

Superior Mechanical Properties: Higher tensile strength, flexural modulus, and impact resistance, allowing for thinner wall profiles and lighter structures.

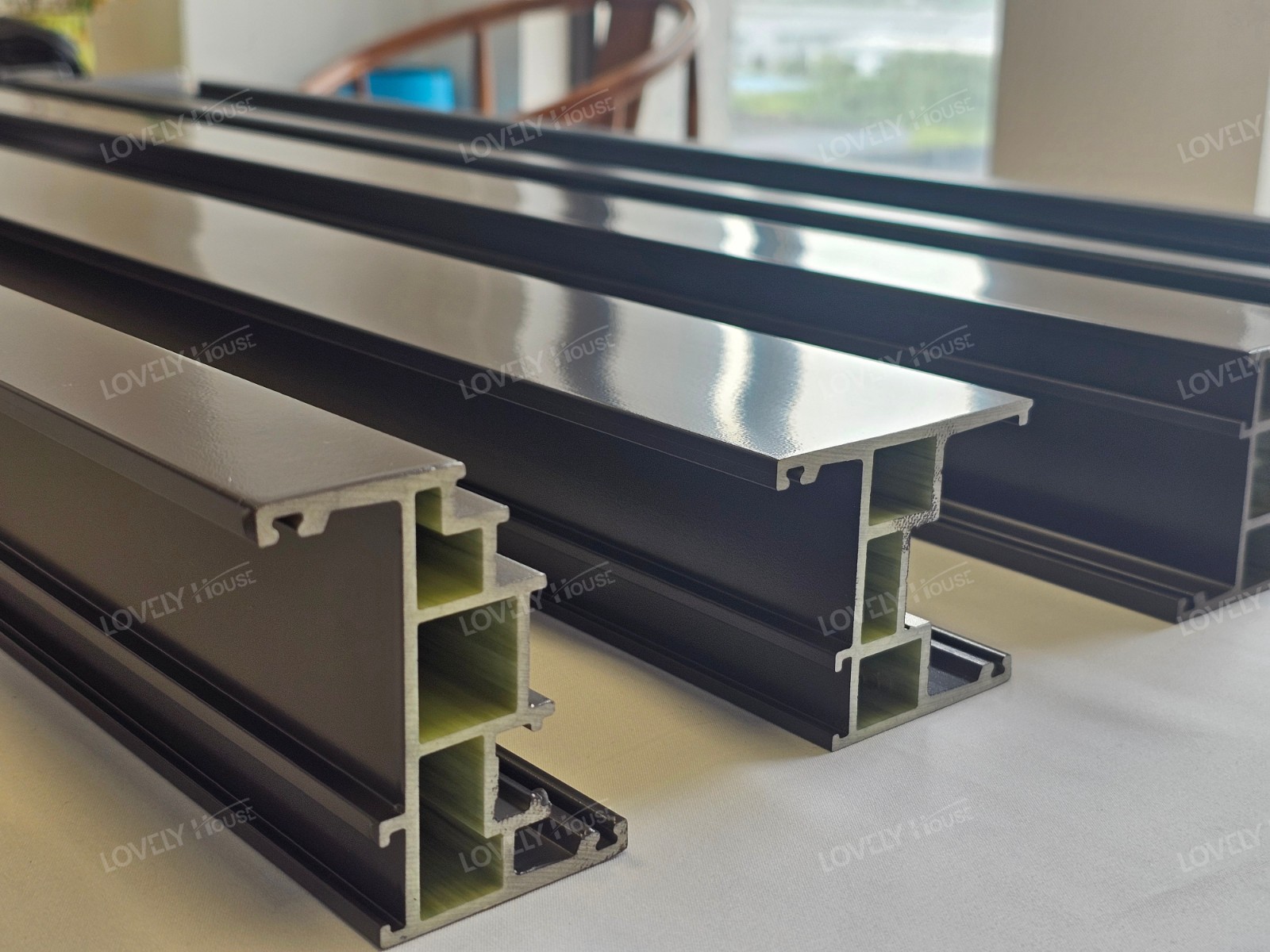

Excellent Thermal Insulation: Ideal for energy-efficient window profiles and curtain wall systems due to extremely low thermal conductivity.

Outstanding Interlaminar Shear Strength: The superior bonding between PU resin and glass fibers ensures long-term durability under dynamic loads.

Premium Aesthetics: A sleek, high-gloss surface that eliminates the need for expensive post-production coating or painting.

Technical Summary & FAQ

FAQ 1: Why is PU pultrusion more difficult than polyester pultrusion?

PU pultrusion requires managing a fast-reacting, moisture-sensitive two-component chemical reaction under strict temperature and mixing controls, whereas polyester pultrusion uses a single-component, shelf-stable resin system.

FAQ 2: What are the benefits of mat-free (no surface veil) pultrusion?

Mat-free pultrusion creates a sleeker, more precise, and highly aesthetic surface finish. It reduces profile weight and allows for sharper geometric corners, though it demands absolute control over micro-bubbles and fiber wetting.

FAQ 3: How does ambient humidity affect FRPU production?

High humidity introduces moisture into the chemical reaction, causing the isocyanate to foam. Advanced manufacturing requires strictly controlled environmental conditions and specialized raw material handling to prevent defects.

Conclusion

Mastering Polyurethane pultrusion is not about replacing a resin tank—it is about implementing a total ecosystem of precise chemical engineering, advanced dosing technology, and rigorous process control. At Lovelyhouse, our ability to consistently manufacture mat-free, high-surface-quality FRPU profiles is what sets our technology apart.

Contact our engineering team today to learn more about how our advanced FRPU solutions can elevate your next project.
